Graphical Support of the Traffic Simulation System
Department of Computer Science and Engineering
Faculty of Applied Sciences
University of West Bohemia
Pilsen, Czech Republic
This paper describes the editor of street graphs, which is a part of system for a traffic simulation – Java Urban Traffic Simulator (JUTS). It enables the users to create a street graph from the given geographical data, or to modify it. The street graph is a detailed road map of a town district, it includes roads, crossroads, vehicle or parking lanes. Street graphs are intended to be used as an environment for a traffic simulation in Pilsen (Czech Republic), or in any other town which can provide the whole simulation system with all input data in the correct format.
All actions of the editor can be done in an elegant way, users do not need to be specialists in geographical systems. The users can create a new map or they can change an existing map saved in XML format.
Keywords: road map, map-editing, XML, GIS systems, simulation system, 2D system, JUTS.
In Pilsen, as well as in most cities and bigger towns, there is a very bad traffic situation both in the historical center with a great number of narrow lanes, and on the main roads with the heavy traffic. As in Pilsen there is no simulation system that works on the microscopic level (it means a simulation of particular vehicles), we were asked to create a simulation system that would enable a traffic simulation based on the real data measured directly inside the roads, and that could be extended in the future.
In this project we cooperate with the transport department of Pilsen municipals from which we obtain the data for the half-automatic simulation map generating and the data for running the simulating process coming from several detectors. For software preparation and testing we use the data from one small district of Pilsen.
We are trying to create a complex simulation system with easy methods for editing and generating simulation maps and other modules for data preprocessing. The main aim of this project is to simulate the traffic concentration depending on real data measured on the real roads and at crossroads. Basic parts of our system are a simulation core  and a graphical user interface that communicate together and perform the simulation with an online visualisation. The system also includes a map editor and transformation utilities for data conversions. The Map editor serves for an easy and comfortable preparation and editing the maps (= street graphs).
This paper shows how a traffic simulation can be graphically supported by creating a special tool – the graphical editor. Also a close relationship to data files and their formats is described.
Section 2 goes into the related work, existing GIS system and systems for traffic simulation. The structure of the system into more detail decribed in Section 3, file format specifications in Section 4. More information about the graphical editor and some of its most important functions can be found in Section 5. Section 6 concludes the paper.
2 Related Work
A traffic simulation system can be a very useful tool while anticipating traffic jams, possible problems during road reconstructions, etc. The transport department of Pilsen municipals is using just a sketch tool for global traffic flow calculations based on some public and commercial area positions together with a raw traffic network structure. As no microscopic simulation is available, Pilsen is interested in creation of a microscopic simulation model of the traffic flow and in getting more information about traffic in more specific areas.
As we want to have a detailed model and a manual map creation takes a long time, we need some graphical tool for a semi-automatical map creation. At first, we were trying to find some suitable existing system that we would be able to use for the preparation of street graphs. That is why we were exploring GIS systems.
According to , there are over 20 companies (e.g. Bentley, Intergraph, ESRI, Foresta, Gepro, ...) dealing with GIS. The number of products themselves is even higher. Most of them put stress on a coordinate system exactness, a work with rasters and many other geodetic and construction functions which are important for the map creation. At a user’s disposal there are many functions for various distances, surfaces or land tract computations. Software packages differ in size of the areas they are working with – some are good for processing the whole states, some are suitable for covering coordinations of building estates, roads or stands only.
The basic functions of GIS systems are usually very similar, the systems differ in specialized functions. Due to the requirements for a close cooperation with other parts of the simulation system, requirements for specialized functions e.g. for crossroads editing. Since it is necessary to have a simple and cheap tool, we decided to find a system most conformable to that we would need, and to create a new specialized graphical tool for the simulation map creating and editing – a graphical street graph editor. After consultations with experts from the Department of Mathematics – the Department of Geomatics, University of West Bohemia, we decided to use the system Kokeš .
The basic study was to get a maximum amount of information concerning the service and style of work in the systems for map processing. We tried to find such functions which would simplify and speed up editing of street graphs to the user.
A graphical editor of street graphs has to combine some control elements used in usual graphical editors and some special functions for manipulation with the map and its parts – crossroads, roads, etc.
3 The JUTS project
At the beginning of the JUTS project, there was only a case study for a new microscopic model. But during the time, as the cooperation with the Pilsen city has been growing, it has become a project with many subproblems, subprograms and team members. The main part of the project is the simulation module that loads the map and performs the simulation and enables visualisation of the simulation. Input data for the simulation are prepared in the separate part of the system.
Map data (geographical coordinates and information about crossroads) are loaded by the map editor. In the editor, data are processed into the form of a map and saved in the XML files.
Values of the traffic intensity are measured by detectors – measuring loops – which are placed under the surface of each crossroads lane. These detectors are counting numbers of cars that drive over, and every 15 minutes they save the measured values in the form of a separate file to the central computer. We can operate with these files. At present, we can apply data from the whole year 2004. Measured values are preprocessed in the separate system part and read in the simulation part of the system, where the real traffic is simulated.
The process of simulation can be followed online (it means the user can see how cars were driving in the observed district) or offline (the user is interested just in some critical sections of the traffic during the day and in the final statistics; the visualisation is not used). A more detailed description of JUTS system you can find in . The structure of the system is shown in Figure 1, the whole project is written in Java.
The graphical editor serves for comfortable preparation of the simulation system input data, but they can be also prepared by a direct modification of the XML files. It uses known techniques but because of being so specialized, it cannot be produced by any other tool.
Figure 1: Structure of
the JUTS system.
Figure 1: Structure of the JUTS system.
4 File Formats
Input and output files have a specific format. This format was one of the basic things we had to standardize at the beginning of the work because there are several parts of the system that use these files. Except for two input files with the geographical data, files are given in an XML format. The XML format is very advantageous for many reasons (well prepared methods for XML processing in Java, universality of this format and its simplicity).
There are five files with which the editor works – two input files with measured geographical data (coordinates of road segments and crossroads points), an input file with crossroads description, an output file with the graphical part of the street graph data which is used by the simulator for a map visualisation and a simulation output file with relationships of roads, crossroads, etc.
4.1 Input File – Road Segments
This file has not an XML structure. It is a text file containing geographical data – vertex coordinates of all road segments. Each line contains coordinates of a bounding box of one road segment. All coordinates are measured with respect to the official geographical measured point which is located near the town of Talin (the starting point of the S-JTSK – the system of the unified Czech/Slovak Trigonometric Cadastral Net ).
These values do not give the exact direction of the road segment. They just say that the segment is closed inside of the bounding box and it starts and ends on the border of the bounding box.
4.2 Input File – Crossroads Points
It is another text file. It gives all coordinates of crossroads points of the processed region. A crossroads point can be a crossroads or just a point where “something happens“ (e.g., an exit from a parking place, or just a connection of two road segments). Each road segment goes from one crossroads point to another.
Measured values are, as in the first input file, given with respect to Talin.
From these two input data files, a basic road net can be automatically prepared. For each road segment bounding box, two crossroads points are found and a road segment is determined as the segment of a line between these two points. Although we use this approximation, it gives good results for the simulation. Examples of possible situations during connecting crossroads points and road segment bounding boxes are shown in Figure 2. An example of a final road net is shown in Figure 3.
Figure 3: An example of a
Figure 3: An example of a road net.
4.3 Input File - Crossroads
The file has an XML format and includes data from the traffic light controlled crossroads. A crossroads is described from two points-of-view, a static view and a dynamic one. The static view describes the crossroads from the view of a designer (a total number of streets, their names, a total number of vehicle lanes and their directions, etc.). The other view represents the data from measuring loops detecting cars driving over detectors and formulas for calculation of the traffic intensity. This part of file is not important to the graphical editor.
Each crossroads has its name and number. These attributes are gained from the official city infobase. If we look at the crossroads from the designers point-of-view, we can see that each crossroads has several streets, with a defined name and a rough orientation. The orientation of every street is specified according to the clock time (see Figure 4). In this point, an accuracy of the rough orientation is adequate. The more accurate orientation setting comes during the map editing while mapping the crossroads onto the crossroads point.
Each street consists of two parts – a road going to the crossroads (roadIn) an a road which goes from the crossroads (roadOut), roads are divided into vehicle lanes (laneIn, laneOut). For a vehicle lane there are several attributes – a description and a shortcut of the direction of the cars and also a vehicle lane sequence considered from the left side of the road (in Figure 5 marked with numbers). Some other mentioned features of the crossroads description can be seen in Figure 5. The file format thinks also of more specialized cases, such as one-way roads, roundabouts, flyovers or more complicated crossroads.
All crossroads parts have their own identifiers which serve as a connection with the simulation system.
Figure 4: A rough orientation according to the
clock time used for the street description.
Figure 4: A rough orientation according to the clock time used for the street description.
Figure 5: A description of the basic crossroads
parts and their relation to the XML tags.
Figure 5: A description of the basic crossroads parts and their relation to the XML tags.
The editor generates two output files. The first one, a graphical part of the map, serves for an online visualisation of results. The other one, a simulation part of the map, is used to save the map structure for the simulation. These two files are generated so that it would be possible to separate the simulation and visualisation part. It is not necessary to do the visualisation each time (or the whole time), as well as the simulation (results obtained from the simulation can be “replayed“). It would be possible to keep both kinds of information in one file, but it is more useful for us to have it in two files, e.g., the XML parser for both files can be done in a more simple way. All elements in both files have their identificators which serve for connecting separate map parts.
4.4 Output File – the Graphical Part of the Map
Graphical part of the map serves for an online visualisation of results. Any time during the map creation and modification it is possible to export it into the output XML file. It means that each operation has been finished and the map is consistent after each operation.
The structure of this XML file can be seen in the form of a tree structure in Figure 6. All data are encapsulated in the tag graphic. It includes a bounding rectangle (BoundingBox), a part for roads (RoadGraphic) and a part for crossroads (CrossRoadGraphic). RoadGraphic may contain one or more description of particular roads (RoadGraphicItem), CrossRoadGraphic may contain one or more crossroads definition (CrossGraphicItem). Each road is determined by its id (roadID) and consists of one or several vehicle lanes (lane), which is described by two curves, see Figure 7. Each crossroads has also its unique id (crossID) and is given by several curves, see Figure 8. Crossroads places for definition of possible car driving directions are defined here (CrossRoadPlace), too.

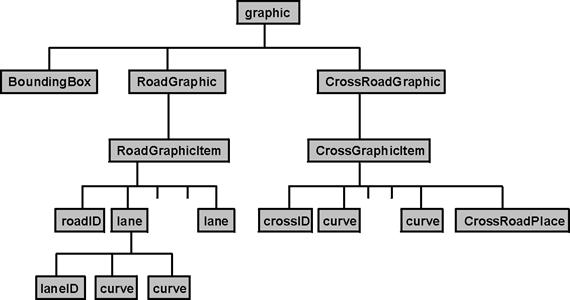

Figure 6: The
structure of the output XML file with the graphical part of the map.
Figure 6: The structure of the output XML file with the graphical part of the map.
Figure 7: A visual illustration of dividing the
road into the XML tags.
Figure 7: A visual illustration of dividing the road into the XML tags.
Figure 8: A visual illustration of dividing the crossroads into
the XML tags.
Figure 8: A visual illustration of dividing the crossroads into the XML tags.
Items are further split into more detail parts, but this extended description is not necessary on this level of understanding.
Each item (vehicle lane, road, crossroads) has its own identifier. This ID is used for the connection of graphical and simulation files. The simulation file is briefly mentioned in the next part.
4.5 Output File – the Simulation Part of the Map
This type of the output file serves for a traffic simulation. It includes connections between all items of the map. The roads are connected to the crossroads, the crossroads carry a definition how cars can drive through, etc. This file also contains generators and terminators that provide the car traffic simulation. These objects are constructed in the simulation model and are of no interest in the graphical editor and out of scope of this paper.
The graphical editor enables an easy construction of both the output files from the given input data. Both the output files can be reopened and the graphical and simulation part modified.
After reading input data files the editor uses all data to make a maximum of work automatically, then the user can complete the map by adding information about vehicle lanes, one-way roads, etc. The finished map can be also modified, single map parts can be inserted, deleted, modified or completed.
The work runs in several steps:
1) From the input geographical data (the input file with road segments and crossroads points – Sections 2.1, 2.2) a basic road net is automatically generated – the neighbouring road segments and crossroads points are connected, possible positions of crossroads are determined.
2) The user can change the generated road net by creating/deleting of the crossroads points or road segments. Several functions for the road net modification are available. The user has to allocate particular crossroads from the list to the prepared crossroads positions. The crossroads are described in the other input file (Crossroads - Section 2.3).
3) According to the placed crossroads, the roads for necessary vehicle lane number are automatically extended. Neighbouring crossroads are connected.
4) The user corrects vehicle lane numbers - e.g., he/she can add vehicle lanes for turning to the right or left.
5) The editor automatically preprocesses possible directions and ways for driving through the crossroads. The user can correct or complete it manually.
6) The user can add parking lanes if necessary.
7) The created street graph can be exported into both the output files – the graphical and the simulation part (described in Sections 2.4 and 2.5).
The graphical user interface of the editor uses many controll elements to simplify creating the street graph – menu, toolbars with easy access to most frequently used functions. Each component can be hidden or set visible. Part of the main editor window with menu and all visible toolbars can be seen in Figure 9.
9: Part of the main editor window with menu and all visible toolbars.
Figure 9: Part of the main editor window with menu and all visible toolbars.
As it was mentioned in the introduction section, the graphical editor of street graphs has to combine some control elements of usual graphical editors and some special functions for manipulation with the map and its parts – crossroads, roads, vehicle lanes, access places, etc. The functions can be divided into several groups, the most important are: functions for file processing, view functions and design and map functions.
5.1 Functions for File Processing
The user has two possibilities how to start working with the map. The first one is to create a new street graph from all input files. As there is more than one file read into the editor and data have to be read at the same time, the editor uses a project file. This project file (in the XML format) includes references to all necessary inputs. Functions for project creation and modification belong to the editor file functions, too.
The other possible way is a modification of complete street graphs (graphical and simulation one) which are already saved in the correct XML format. Any map like this can be opened, changed and resaved.
For reading and storing data in the computer memory we use a DOM (Document Object Model) approach which is fully supported by classes from the Java Core API. The DOM classes create a tree object model in the memory which can be easily modified. Data from this tree are after each operation directly exportable to the output XML files.
5.2 View Functions
These functions are intended for working with the map view – map scale, zoom, a region choice by a rectangle, exact map scale settings, etc. It is possible to say that the editor covers all expected (normally used) functions for this group of editors.
The editor also enables switching to a full screen mode. In this mode all controll elements are hidden.
5.3 Design and Map Functions
These functions are the key part of the editor. They are the main reason why this special type of graphical editor has been constructed. The functions are used for the design, corrections and removal of lines, roads and crossroads. The editor also enables several user interface settings for more comfortable work.
Map elements functions belong to fundamental ones. The user can insert a new map element – road, vehicle lane, crossroads, ... directly into the street graph. During creation, basic properties (size, position) have to be set. The rest of the element properties can be set in the time of creation or later. For this modification the element can be chosen from the street graph directly by a mouse click or through the dialog with a list of all existing map elements. It is also possible to work with a group of elements. The algorithms for element choice can be found in .
The system also enables automatical corrections (a connection of adjacent elements or fastening a newly created road to the existing crossroads, etc.).
The editor supports work in layers – it means that every element is placed in one of several specialized layers – roads, crossroads, text descriptions, etc. All layers can be set visible or some of them can be hidden. In the user interface setting each layer obtains its own color and the style in which it is drawn. All pre-set values can be saved to an INI file (also in an XML format).
If the user likes to use, e.g., an aerial photograph of the constructed area, he can insert the picture on the background of the street graph, create the map and then remove the picture or use another one.
An example of the application state during the street graph processing can be seen in Figure 10. It is a situation after the first step – reading the input data. Crossroads points and road segments are processed.

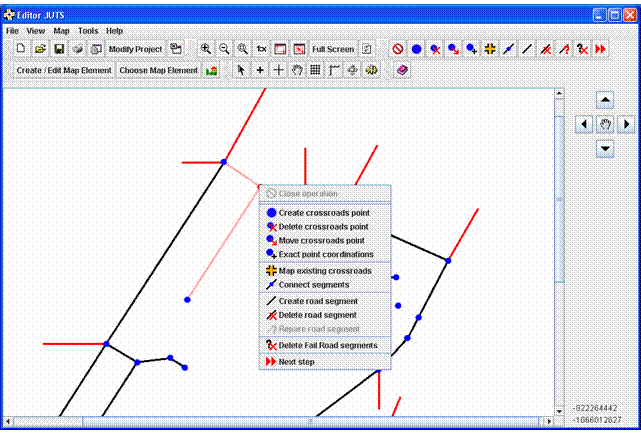

10: The main application window after reading of the input data.
Figure 10: The main application window after reading of the input data.
6 Conclusion, Future Work
This paper presented a system dealing with the street graphs (maps) processing. The main functions and main features necessary for the style of work in the graphical editor are described. This system allows the user to create a completely new street graph from the input data files or to open and modify an already existing map. In the paper, the used file formats were described in detail.
The editor as well as the other parts of the simulation system have been implemented in Java. Thanks to classes for XML processing this file format is very suitable for data manipulation in the intended task.
The next step in the developement of the software will be a testing phase by responsible experts from the municipal traffic department. It is possible that the range of the input files will be extended in order to handle other future tasks by the intended users. This depends on possible requirements of responsible experts. We hope that the whole simulation system will help to improve the traffic situation in Pilsen.
I would like to thank to Dr. Ivana Kolingerová and Dr. Pavel Herout from the Department of Computer Science and Engineering, Faculty of Applied Sciences of the University of West Bohemia, Pilsen, Czech Republic for their suggestions and advising during preparing this paper.
The research was supported by a grant of the Grant Agency of the Czech Republic – Research of methods and tools for verification of embedded computer systems, no 102/03/0672. Moreover, my work was fully supported by a special scholarship from the Pilsen municipals.
 Hartman, David, Head Leading Algorithm for Urban Traffic Model. Proceeding of European Simulation Symposium. pp. 297-302, 2004
 Cajthaml, Jiří, The present state of geographic information systems for towns and cities in Czech Republic. Proceedings of GIS Ostrava 2005
 GEPRO s.r.o., Documentation for Interactive Graphical System. 2002
 Hartman, David, Implementation of Head Leading Atgorithm in Simulation of Traffic in Pilsen. Eighth United Kingdom Simulation Society Conference, Oxford, UK, 2005
 Veverka, Bohuslav, Krovak Projection.
 O' Rourke, Joseph, Computational Geometry in C. Cambridge University Press, 2000
