Semantic Metadata Creation


Pavel Halabala

Computer Graphics Group

Czech Technical University, Faculty of Electrical Engineering




We focus on semantic description of 2D/3D scenes. Several problems with common formats, especially with VRML, are discussed. MPEG-7 is a relatively new standardized tool providing extended features in semantic description of multimedia content. Short introduction into its capabilities is made. How does it help us to solve our problems with semantic description? We use MPEG-7 format to store semantic graphs related to an appropriate scene. The application for creation, editing and visualization of MPEG-7 description is implemented. Special emphasis is laid on the functional model of the application enabling extensibility in the future. Problems with visualization of MPEG-7 description are discussed in an extra section. The results of our study are summarized in the list of implemented features.


Keywords: Semantic description, Functional model, VRML, SVG, MPEG-7, Visualization, Semantic graph.


1       Introduction


An incommensurable amount of audiovisual information is becoming available in digital form, in digital archives, on the World Wide Web, in broadcast data streams and in databases, and this amount is steadily growing. There is a variety of binary and textual (XML based) file formats representing the audiovisual information and in practice we want to use both of them. The quality of information often depends on how easy it can be found, retrieved, accessed, filtered and managed. The data itself usually do not have any semantic description that would help us to easily recognize its content. Thus we need a standard generic tool, which will be used to describe the multimedia content and on basis of this description we can find, retrieve, access, filter and manage audiovisual information. MPEG-7 is the answer to this need. The MPEG-7 standard, formally named “Multimedia Content Description Interface”, provides a rich set of standardized tools to describe multimedia content. Both human users and automatic systems that process audiovisual information are within the scope of MPEG-7.


2       Goals


We are aimed at MPEG-7 semantic description of 2D/3D scenes. A modular system, which simplifies or in ideal case automates creation and editing of semantic description should be proposed. Modularity is understood as the possibility to use various visualization concepts for one semantic description and support for more data formats. Primarily we take into account following data formats: VRML, X3D and SVG.


3       Related work


The MPEG-7 semantic description is not the only way to represent meta data. RDF (Resource Description Framework) is another format for similar purposes. It was developed by W3C and provides interoperability between applications that exchange machine-understandable information on the Web. Another example would be the DAML+OIL language which uses ontologies.


4       Use case


Scenario 1: User needs a 3D model of a building or only its part. The system knows his context and the context is used together with the user’s query as an input to the system, which will generate an adequate 3D scene. What is adequate is determined using the 3D model itself together with a semantic description stored in MPEG-7 format. For the user is this as transparent as possible. For the system’s functionality is it fundamental to have appropriate semantic description to be able to recognize the functional structure of the 3D model.


Scenario 2: The user, typically a construction site manager, inspects the construction yard while having a mobile device at disposal. He can similar to scenario #1 query the system to provide 2D blueprints in SVG format. Then he can compare the reality to the plan and make some notes in a form of annotation directly to the SVG plan. While he generates the annotation, additional semantic information is recorded at the same time. The semantic information is again in MPEG-7 format and will later be used when searching for relevant data.


Scenario 3: This scenario is in fact an extension of scenario #2. The user can besides annotating the SVG blueprint also directly edit it (or a working copy of it). When selecting or editing an object, the user will be visually notified of other semantically related objects. For example when moving a wall, all windows and doors in the wall must be moved also. When moving a table, all chairs should be moved too, and so on. For this functionality we again need a semantic e.g. functional description of the model in our case stored in MPEG-7 description.


5       Problem description


In all scenarios we work with semantic description of given scene. The question is how the structure of semantic description looks like and how it could be created. In our work we focus to the process of metadata creation.

5.1 Problems with other formats


An ideal situation for our scenarios would be the case when the semantic (logical and functional) description of a 3D/2D model would be a part of the data format. VRML and SVG formats are unfortunately not the case. We can derive some information about the functionality of the modeled object from the geometrical structure. Usually there is a correlation between how the object is modeled and how it really works. Nevertheless we cannot rely on it. Let’s have a look at some aspect of the authoring process, which helps us to obtain the semantic information from the geometry. For example, a scene in VRML format has a hierarchical structure. The author usually groups a set of functionally related objects not only due the logical meaning but also for easier manipulation. When creating bigger scenes, smaller pre-defined entities could be used (PROTOs). Similar to the object grouping, the PROTOs usually reflect a functional subset of modeled objects. After using them we obtain logically built scene matching to the functionality of the 3D model in certain way.

Despite of the grouping and PROTOs techniques, the hierarchical structure of the VRML format is restricted in expressing abilities. We will demonstrate the limitations on a simple example. Having two rooms – room A and room B – in VRML there is no way how to express that their common wall belongs into both rooms. Only one room could be chosen as a parent of that wall. This problem is shown in Figure 1. In VRML there are 2 possible hierarchies of the scene depending on placement of the wall “Wall X” which conduces to a little semantic incorrectness, because a part of the semantic information is lost. The DEFed node “Wall X” can be added to the scene graph only once, otherwise we would get more independend objects.


Figure 1. Limitation of VRML in abilities to express semantic information


Semantically correct solution of this problem would be presence of the wall “Wall X” in both rooms – “Room A” and “Room B” in the object hierarchy. This is shown on .


Figure 2. Correct semantic description of the scene in Figure 1

We cannot do this in VRML by simple applying two times the USE construction for “Wall X”. In that case the resulting scene graph would contain two independent walls. For example moving one of them would not affect the second one, because it could genarally be USEd under another transform node.

This problem is not the only one in VRML. Other than hierarchical relations cannot be specified at all. For example it is impossible to specify that from one room can we go through the door to another room, because it is pure semantic property of the door object.

All of the problems discussed in this section are comprehensible, because the purpose of VRML is modeling of virtual reality rather than creating of semantic description for the modeled scene. But we can solve such a problem by using additional information about semantics of the scene in MPEG-7 description.


5.2 MPEG-7 semantic description


In this chapter we focus on the structure of the Semantic graph section of the MPEG-7 format. There are 3 basic tools in MPEG-7 standard used for description of semantics of multimedia content:

·         Semantic EntityDescribes scenes or semantic entities in scenes. The definition is recursive and based on level of detail so that we can go as deep as necessary. (room->bed->pillow->feather->…)

·         Semantic Attribute Describes attributes of semantic entities and semantic measurements in time and space. (color, material, position, etc.)

·         Semantic Relation Describes relations among semantic entities.


The structure of MPEG-7 description can be understood as a graph where nodes represent semantic entities and edges represent semantic relations. Semantic graph gives us information about semantics of the modeled scene. Figure 3 shows an example with semantic graph of a scene with two connected rooms. It consists of connections of semantic entities (=nodes) with appropriate relations (=edges).

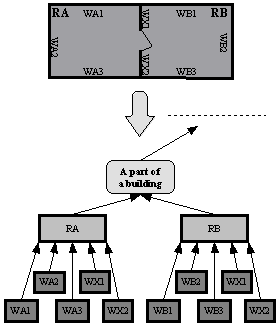

Figure 3. Modeled scene and resulting semantic graph

There are 2 types of entities shown in the semantic graph:

·         Objects (walls W* and  rooms R*)

·         Events (connection P)


Walls are the only real existing objects in the scene above. Rooms RA and RB are entirely imaginary objects built from surrounding walls (and optionally from other objects inside them), but in the semantic graph they have the same type and are handled similar to walls, although they need not to have an equivalent description in the original format of the VRML scene. On the contrary events are completely different. In our case connection P is an event, which reflects an ability to move from RA to RB and from RB to RA.

With regard to previous cogitations we take into account following two groups of relations:

·         ObjectObjectRelationbinary relations between two objects

·         ObjectEventRelation – binary relations between one object and one event


In each group there are many predefined relations in MPEG-7 standard, but the norm does not strictly prescribe which relations should be used in various real situations. The interpretation of each relation depends on the concrete purpose of the developed application. The use of the MPEG-7 semantic description depends on the application. It seams to be useful to combine the semantic description with ontology database. The ontology then describes the existing objects in a given area while the semantic description glues those abstract objects to the real data format.


6       Solution


In this chapter we analyze basic functionality of the application working with MPEG-7 description in more detail. Alternative visualization techniques and further capabilities of MPEG-7 are introduced. Extra emphasis is laid especially on interaction with the user and modularity of the system. Finally concepts for plug-in components and for use case depended dictionaries are discussed.

Our system should run on various operating systems and devices (desktop computers, PDAs, etc.). In order to ensure platform independency it is necessary to use convenient programming language. We have chosen Java, which is platform independent and suits well to our mobile scenarios.

6.1 Basic functionality


We are trying to integrate the visualization of the multimedia format (VRML/X3D/SVG) with the visualization and creation of MPEG-7 description. The application layout will contain two basic windows. The first will display an appropriate data format, the second one will work with MPEG-7 description. When editing the MPEG-7 description the user must be able to interact with the 2D/3D model. Selecting an object in the model will result in selecting an appropriate entity in MPEG-7 description and vice versa (see Figure 4).


Figure 4. Basic application model

When selecting a semantic entity describing an object “Room” all objects associated with it should be selected in the browser. In our case it will be all the walls surrounding the room and its contents. Selection means highlighting in a way defined by the browser. The browser receives a message from the MPEG-7 component with description of objects that should be selected (resp. deselected) and processes the selection. For example in 3D model material properties (color, transparency, etc.) of objects could be changed. Similarly in 2D some visual properties of the selected objects will be changed.


User’s context based work


Context is a set of information about location, time, user, device used, environment, sound, brightness, etc. The generated MPEG-7 description can be enriched by some information from the current user’s context. The problem of collecting and updating of the context data is not the theme of this work.


Level of detail (LOD) based work


Let us imagine selection in an opposite way than on Figure 4. The user selects an object in the browser and is awaiting selection of an appropriate semantic entity in MPEG-7 component. The question is what is the appropriate entity. (see Figure 5)


Figure 5. Problem with selection

After selecting a feather in the browser are we awaiting selection of the feather in MPEG-7 component. But not every time. According to the created semantic description there is a possibility to go into less detailed levels in the semantic graph. The user could choose “Room” level for example. After that he wants to work only with rooms and their components do not interest him at this time. He would be awaiting selection of the whole room instead of feather. The problem is that the browser does not know anything about semantics of the scene and is not generally able to recognize it. In consequence of that it cannot decide which objects to select based on the chosen LOD. This is a work of the MPEG-7 component. (see Figure 6)


Figure 6. Selection based on LOD

The browser never performs the selection after clicking on an object in scene immediately. First it must send a message with information about selected object to the MPEG-7 component and wait for reply. The core process in MPEG-7 component decides which objects should be selected according to the LOD and also according to other conditions and state of the MPEG-7 component. One of the conditions will be discussed in the following section.


Level of abstraction (LOA) based work


Level of abstraction offers a different view to the same data. It is determined by a degree of generality the user wants to work with when editing the MPEG-7 description. For example he might want to work only with objects made of wood. Their shape, color, etc. are not important at that moment. His query to the system will be: “show me all objects made of wood”. How does the system use the MPEG-7 description to accomplish this task? At first it needs to know the properties of the objects. Every object must have a set of its attributes and just according to the attributes the user can specify the LOA graph. (see Figure 7).


Figure 7. Example of LOA graph

The nodes of the LOA graph must meet an inheritance criterion, which means that every parent must be a generalization of its children. (Jane’s wooden bed IS a wooden bed, a wooden bed IS a wooden object and a wooden object IS an object). We must notify that LOA is not LOD, because LOD is based on containment instead of inheritance. (A building HAS rooms, a room HAS beds and a bed HAS a feather, etc.)

The selection functionality is similar to LOD. The MPEG-7 component will search for appropriate values of attributes and command the browser to highlight found objects. For example after selecting of “LOA 2” (see Figure 7), the system is prepared to search objects with a given “material” and “shape” attribute. And what happens when a bed would be chosen in the browser? It depends on material of the bed. The system will search for all beds, which are made of the same material as the chosen bed. (because not each bed is generally made of wood).

We utilize the LOD and LOA for creation of MPEG-7 description. The most important part of our system is the MPEG-7 component where creating and editing of MPEG-7 description takes place. In order to simplify these actions as much as possible, the user needs to see the results in the original scene also. He can use the selection possibilities discussed in the last section. For example he might want to create a new entity with all computers in the building or on the 2nd floor only. He could change attributes of objects in the whole group and so on.

6.2 Visualization of MPEG-7 description


There are many ways for visualization of MPEG-7 description. Some of them will be introduced in this section.

A semantic description might be very complicated. Although the MPEG-7 format is based on XML, eg. it is text based, the complexity of the description will often exceed the human’s ability to get if from the native form. When visualized it is much more understandable. We make fewer mistakes and expose more.


Visualization criteria


Because of the free enhancement possibilities for entity and relation types, in various real situations the graph could be much more complex and it is generally impossible to see it whole. There must be some a set of criteria defined by the user specifying the graph area to display.

Three of them imply directly from the functionality of MPEG-7. Thus the semantic graph may be filtered according to:

1.        Entities with given attributes (shape, color, material, position, etc.)

2.        Given types of relations (components of objects (1:N), connections of rooms (M:N), etc.)

3.        Both entities and relations


1. Filtering by given attributes of entities is quite easy and could be done by “cutting” entities in semantic graph which do not meet a specified filter criteria. With this we can filter some objects we do not want to see in the visualized semantic graph.


2. Filtering by relations is more interesting. Dividing the relations into the categories (1:N) and (M:N) rapidly changes the structure of semantic graph. We will discuss the consequences in more detail in the following paragraphs. It has a direct influence to the visualization used.


3. The last possibility arises after combination of previous two points. It is the most powerful solution, because we can filter the semantic graph according to attributes of objects and relation types.


Visualization of (1:N) relations


We discuss here visualization of semantic graph after applying filtration according to some (1:N) relation. In this case we visualize only that parts of semantic graph connected by the specified (1:N) relation. These are mainly relations based on containment. As an example we can take the same scene as on Figure 3. The difference will be in the visual form of its semantic graph. Due to the filtration by relation type (1:N) we know, that the new semantic graph is a tree (see Figure 8). In order to eliminate cycles from the original semantic graphSG, the walls “WX1” and “WX2” must occure twice. This does not cause any problems, because they are actually the same objects with the same MPEG-7 description.


Figure 8. Visualization of (1:N) relations

This helps us in our application, because visualization of trees is easier to implement than a general graph visualization. Moreover in our implementation we can use existing API with sophisticated GUI for trees.


Visualization of (M:N) relations


(M:N) relations are more difficult to visualize. The structure of the resulting filtered semantic graph will not generally have a tree structure. Instead it will be a general graph. The consequence is that we must have an engine which working with general graphs. As an example we can imagine relation “connection of two rooms”. Because each room could be possibly connected with an arbitrary amount of other rooms, the relation must be (M:N). The data structures indicate certain similarity with databases and could be described by ER (Entity Relationship) diagram which is a common way of representing data in databases. Figure 9 shows an appropriate ER diagram for this situation and its alternative version with an additional entity “Connections”. The second version provides better view on how the data is really stored in the memory.

Figure 9. ER diagram for relation „connection of two rooms“

Due to the Figure 9, the simplest way how to visualize relations (M:N), in our case all connected rooms, would be an interactive table. It would contain rows from the entity “Connections”. In comparison with graph, table has some advantages. It is easy to implement in Java, very transparent and simple (see Figure 10).


Figure 10. List of (M:N) relations in a table

Second solution would be the use of graphs. Generally after filtration of the semantic graph we obtain a new one with unknown topology. Thus we can use a component working with general graphs. But sometimes it is possible to recognize its topology in a certain way. We could test it for planarity for example. In this case some component for visualization of planar graphs (2D grid) would be used. For example rooms in a building may have planar topology and it would be better to work with a 2D grid than with a general non-aligned graph. (see Figure 11)

Further we could use components working with other special topologies like 3D grid, full graph and so on. 3D grid would be a good tool for visualization of connections between rooms in all floors of a building in which the third dimension would be used to visualize stairs, but it is not easy to implement and not so transparent like 2D grids.


Figure 11. Visualization of (M:N) relations in (a) general graph, (b) planar graph (2D grid)


The purpose of using special components for different topologies is clear. Besides better transparency, the creation and editing of MPEG-7 description can be better adapted and automated. Especially in the case of planar graphs there is an existing component system for 2D grids in Java which is another advantage.

6.3 System modularity and plug-in concept


Due to the existence of various components for visualization of MPEG-7 description (1:N, M:N) it must be possible to use various MPEG-7 components in our application. Furthermore we need also support for various components for visualization of the scene (=browsers),  because we want to describe both 2D and 3D scenes. On Figure 4 we assumed the existence of only one such a component in both categories (browsers and MPEG-7 components), but the application model of the real system must be enriched according to Figure 12.


Figure 12. Enriched application model

Our system uses so called plug-in concept. The core of the system is responsible for handling the events from other system components and for maintaining the data structures. Additional components provide the UI functionality along with the visualization of the edited data and semantic data. The visualization components use a defined API of the system’s core. This architecture results in a great flexibility and extensibility. Anyone in the future may create new component simply by implementing predefined interface. Already existing components can be used when a wrapping code is created. The new component can by dynamically added without the need of recompiling the whole application.

6.4 Dictionaries


We are aware of certain application dependency of MPEG-7. For example relations “connection” could have different meanings in different branches. In architecture they would be used in conjunction with rooms in order to define “connection of 2 rooms”. But in geography the relation would be defined perhaps as “connection of 2 towns”. Due to this fact dictionaries with meanings of relations and entities should be made just according to the concrete use case. Actually the dictionary is a template with explanation of all meaningful relations in the appropriate field of application. All of this is in the scope of MPEG-7 standard, because it is very generic and its concretization is not far to seek.

The second reason why we need dictionaries is a correctness securing of semantic description. For example while the user is creating “connection of two rooms”, it is strictly defined that the objects figurating in this relation must be rooms. Thus they must meet a common criterion for values of attributes, in this case shape=room. A short dictionary is demonstrated in Table 1:


Relation name


Left entity

Right entity

Connection of 2 rooms




Room definition








Shape=(bed OR table OR bookcase …

Table 1. Example of a dictionary

7       Implementation


Implementation of some features discussed in the last chapter was done and successfully tested. Here is a list of them:

1.        VRML/X3D browser

2.        MPEG-7 components:

·         Tree hierarchy ((1:N) relations)

·         Table ((M:N) relations)

3.        Modular system + additional class providing access to MPEG-7 description  (see next section)

7.1 Implemented modular system


As mentioned above cooperation between browser and MPEG-7 components must be accomplished. We could:

1.        Bind the browser and MPEG-7 components by calling their methods directly (without inheritance - naive solution)

2.        Generalize the classes with using of interfaces and listeners (better solution)

3.        Do the same as in 2) + insert another class between the browser and MPEG-7 components and allow access to the stored MPEG-7 description to this class only. The communication between the browser and the MPEG-7 components would be accomplished through this class.


Solution number 2 seems to work fine but it has one major disadvantage. The MPEG-7 components would have to directly access the stored MPEG-7 description and this would complicate the implementation of plug-in concept for new MPEG-7 components in the future. Therefore the most complex solution (number 3) was chosen (see Figure 13).


Figure 13. Implemented application model

The cooperation of components works according to the described model in section 6.1 Basic functionality, but only basic capabilities for selection were implemented yet.


8       Conclusion


We have built a system for visualization and creation of MPEG-7 description. The key features of this system are:

·         Modularity

·         Interactivity (browser + MPEG-7 components)

·         Extensibility in the future

The product of our application is a XML file with MPEG-7 description which can be then used for any purposes of any application operating with metadata.

8.1 Future work


In the future we will focus on

·         Implementation of user’s context, selection based LOD and LOA (see 6.1 Basic functionality)

·         Improvement of visualization capabilities of MPEG-7 description, especially for relation types (M:N) (see 6.2 Visualization of MPEG-7 description)

·         Implementation of more plug-in components (see 6.3 System modularity and plug-in concept)

·         Implementation of dictionaries (see 6.4 Dictionaries)

·         Distributive (and collaborative) work




This work is partially sponsored by the German Federal Ministry of Economics and Technology (BMWi). It is part of the BMWI-funded project MAP (Multimedia-Arbeitsplatz der Zukunft), one of the key projects in the area of Human-Technology-Interaction (MTI). The focus of MAP is the development of technologies, components and new methods for multimedia interactions that use novel and intelligent systems offering assistance and supporting delegation. More information:




Balfanz D. (2002), Automated Geodata Analysis and Metadata Generation, in Proceedings of SPIE Conference on Visualization and Data Analysis Vol. 4665 (pp. 285-295)

Li J. Z., Ozsu M. T., Szafron D. (1995), Query Languages in Multimedia Database Systems, Technical Report, The University of Alberta Edmonton

Mikovec, Z., Klima, M., & Slavik, P. (2002), Manipulation of Complex 2D/3D Scenes on Mobile Devices, In Proc. of the 2nd IASTED International Conference Visualization, Imaging and Image Processing  (pp. 161-166), Anaheim: Acta Press. ISBN 0-88986-354-3

Mikovec, Z., Klima, M., & Slavik, P. (1999), Structural and semantic dialogue filters, In Proc. of the 2nd International Workshop Text, Speech and Dialogue (pp. 280-285), Plzen: Springer-Verlag, ISBN 3-540-66494-7

MPEG-7, from ISO/IEC JTC1/SC29/WG11 2000:;

W3C Consortium, XML: The Extensible Markup Language, from

W3C Consortium, SVG: Scalable Vector Graphics, from

W3C Consortium, RDF: Resource Description Framework, from

W3C Consortium, DAML+OIL: Ontology language, from

Web3D Consortium, VRML: The Virtual Reality Modelling Language, from




Screenshots of our application with their explanation are shown in this chapter. We focus here on visualization of relations:

1.        (1:N) – component hierarchy

2.        (M:N) – connections between rooms


1.        In the first case we use a tree hierarchy which is implemented by a java class JTree. The user can build the tree based on containment which means that every child is component of its parent. Interactivity works within the bounds of both windows – 3D scene (left window) x MPEG-7 component (right window). Selection of an object in the scene results in selection of an appropriate MPEG-7 description in MPEG-7 component and vice versa (see Figure 14).


Figure 14. Visualization of tree hierarchy of objects, „Room B“ object is selected

2.        (M:N) relations are visualized by the simplest way – in a table. As a demonstration we take into account connections between rooms only, but it is possible to use the table for visualization of other (M:N) relations also. Interactivity woks similar to previous example. The user can select objects in one window and see the response in the other one. (see …)


Figure 15. Visualization of connections between rooms, connection „Room A“ ó “Room B” is selected
