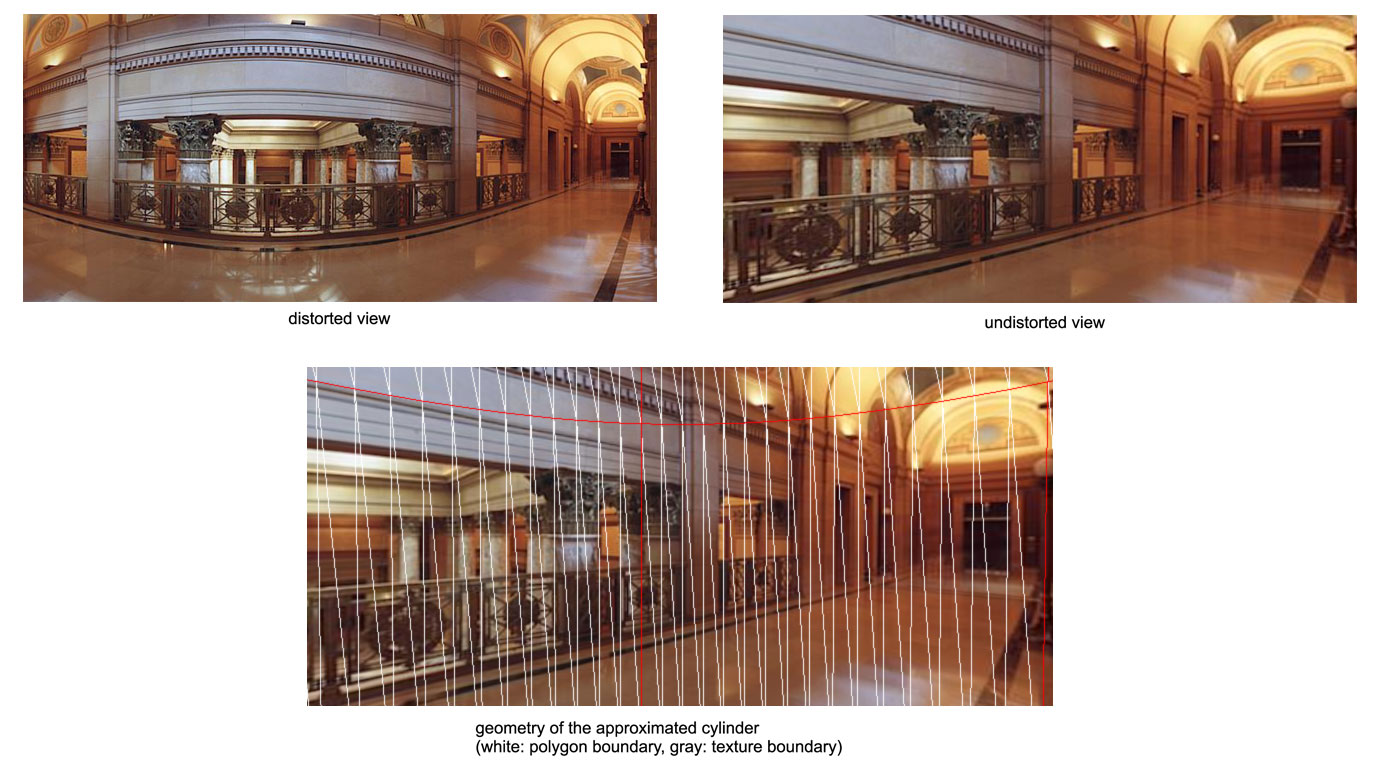

Figure 6 shows results from the test
implementation. The panorama is warped in a correct way: the bent corridor
(upper left image) is displayed - as it is in the real scene - as a straight
corridor (upper right image). The lower image shows the underlying geometry of
the textured cylinder overlapped to the warped image.
